Vertical air floating machine equipment

First, an overview

MFYSF dissolved air floatation sewage treatment seat steel structure, its working principle is: the air through the pump into the pressure vessel tank. Under the pressure of 0.5MPa forced dissolved in the water, in the sudden release of, dissolved precipitates in the air in the water, forming large dense micro bubbles, in the slow rise in the process of absorption of suspension, the suspension density decreased floatation arrived to remove SS and CDCcr.

Two, the scope of application:

The equipment with advanced design, excellent performance, widely used in petroleum, chemical, steel, leather, electric power, textile, food, starch and other industry, sewage treatment system, is a substitute for the traditional airfloat equipment.

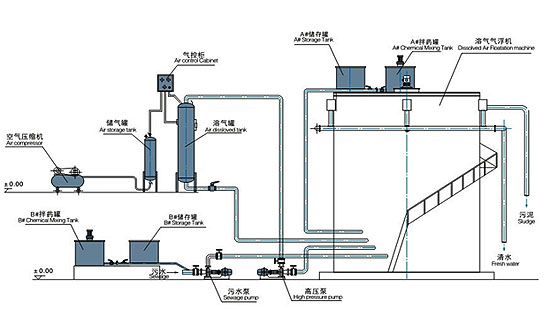

Three, the vertical air floating machine process flow chart

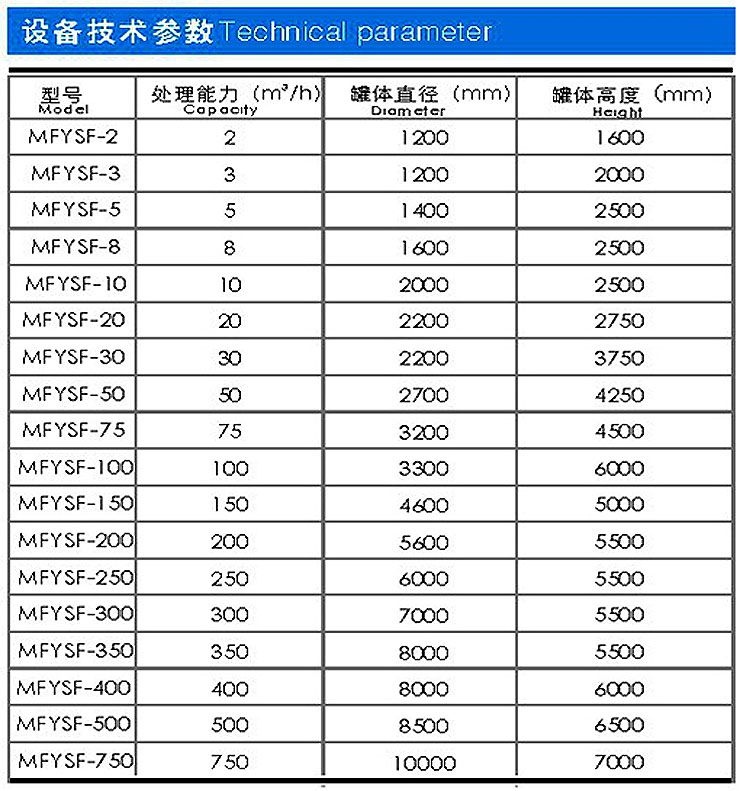

Four, specification model table
